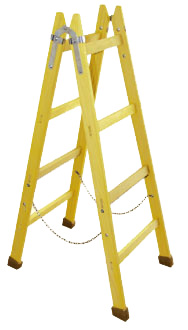

STEP-LADDERS EXKLUSIVE
The ladder-shoes are not a part (component) of ladders, but it is possible to buy it as a seperate item.
The norm is strictly hold. Distance of bars: 320 mm -320 mm- then all 300 mm
4-9 bar´s ladders: Sides - 60x23 mm, bars 45x23 mm, mounting completely zinced /=coverd by zinc/, yellow wood, 2 pcs of chains, 4-7 bars 2 stiffeners, 8-9 bars 4 stiffeners. The 3rd upper bar is made of hard material.
10-12 bar´s ladders: Sides - 75x23 mm, bars 60x23 mm, mounting completely zinced /=coverd by zinc/, yellow wood, 2 pcs of chains, 4 stiffeners. The 3rd upper bar is made of hard material.
|
Supply number Exclusive
|
1003.01
|
1004.01
|
1005.01
|
1006.01
|
1007.01
|
1008.01
|
1009.01
|
1010.01
|
1011.01
|
1012.01
|
|
Number of supports
|
2x3
|
2x4
|
2x5
|
2x6
|
2x7
|
2x8
|
2x9
|
2x10
|
2x11
|
2x12
|
|
Length of side
|
106,5
|
136,5
|
166,5
|
196,5
|
226,5
|
256,5
|
286,5
|
316,5
|
346,5
|
376,5
|
|
Width of side
|
60
|
60
|
60
|
60
|
60
|
60
|
60
|
75
|
75
|
75
|
|
Width of support
|
45
|
45
|
45
|
45
|
45
|
45
|
45
|
60
|
60
|
60
|

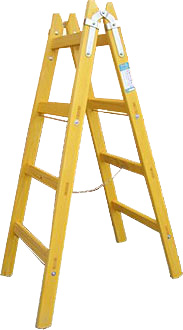

STEP-LADDERS STANDARD 300
Distance of bars: all 300 mm
4-9 bar´s ladders: Sides – 60x25 mm, bars 55x25 mm, mounting and chains zinced /=coverd by zinc/, other iron parts without coating, orange-yellow wood, 1 chain, 2 stiffeners
10-12 bar´s ladders: Sides – 75x25 mm, bars 60x25 mm, mounting and chains zinced /=coverd by zinc/, other iron parts without coating, orange-yellow wood, 1 chain, 4 stiffeners
|
Supply number STANDARD 300
|
1003.02
|
1004.02
|
1005.02
|
1006.02
|
1007.02
|
1008.02
|
1009.02
|
1010.02
|
1011.02
|
1012.02
|
|
Number of supports
|
2x3
|
2x4
|
2x5
|
2x6
|
2x7
|
2x8
|
2x9
|
2x10
|
2x11
|
2x12
|
|
Length of side
|
106,5
|
136,5
|
166,5
|
196,5
|
226,5
|
256,5
|
286,5
|
316,5
|
346,5
|
376,5
|
|
Width of side
|
60
|
60
|
60
|
60
|
60
|
60
|
60
|
60
|
60
|
60
|
|
Width of support
|
55
|
55
|
55
|
55
|
55
|
55
|
55
|
60
|
60
|
60
|

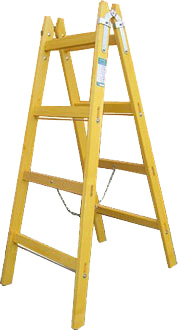

STEP-LADDERS STANDARD 330
Distance of bars: all 330 mm
4-9 bar´s ladders: Sides – 60x25 mm, bars 55x25 mm, mounting and chains zinced /=coverd by zinc/, other iron parts without coating, orange-yellow wood, 1 chain, 2 stiffeners
10-12 bar´s ladders: Sides – 75x25 mm, bars 60x25 mm, mounting and chains zinced /=coverd by zinc/, other iron parts without coating, orange-yellow wood, 1 chain, 4 stiffeners
|
Supply number STANDARD 330
|
1003.03
|
1004.03
|
1005.03
|
1006.03
|
1007.03
|
1008.03
|
1009.03
|
1010.03
|
1011.03
|
1012.03
|
|
Number of supports
|
2x3
|
2x4
|
2x5
|
2x6
|
2x7
|
2x8
|
2x9
|
2x10
|
2x11
|
2x12
|
|
Length of side
|
108,5
|
141,5
|
174,5
|
207,5
|
240,5
|
273,5
|
306,5
|
339,5
|
372,5
|
405,5
|
|
Width of side
|
60
|
60
|
60
|
60
|
60
|
60
|
60
|
75
|
75
|
75
|
|
Width of support
|
55
|
55
|
55
|
55
|
55
|
55
|
55
|
60
|
60
|
60
|

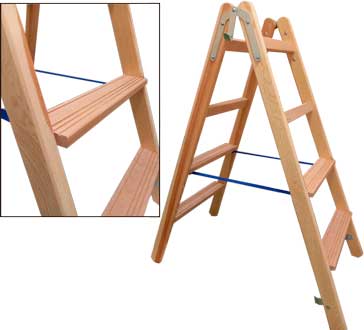

STEP LADDER
Surface finish wood: natural
Surface finish of fittings and joining materials: galvanization
1x hinge with small hook
Side rails – 4-10 steps: 60x23xlength
Steps – 1 u.2 st. 40x23 mm
3-10 st. 30x80 mm antiskid finishing of steps
All steps made from hard timber
Securing against opening: 2x textile band fixed to the steps from the bottom of the ladder
| Table-proportions | |||||||||||||||||||
| Number of steps | Order nr. | L1 | L2 | L3 | L4 | L5 | L6 | L7 | |||||||||||
| 4 St. |
1004.04
|
1240
|
280
|
335
|
115
|
505
|
155
|
8
|
|||||||||||
| 5 St. |
1005.04
|
1520
|
280
|
335
|
115
|
535
|
155
|
10,5
|
|||||||||||
| 6 St. |
1006.04
|
1800
|
280
|
335
|
115
|
565
|
155
|
13
|
|||||||||||
| 7 St. |
1007.04
|
2080
|
280
|
335
|
115
|
595
|
155
|
15,5
|
|||||||||||
| 8 St. |
1008.04
|
2360
|
280
|
335
|
115
|
625
|
155
|
18
|
|||||||||||
| 9 St. | 1009.04 | 2640 | 280 | 335 | 115 | 655 | 155 | 20,5 | |||||||||||
| 10 St. | 1010.04 | 2920 | 280 | 335 | 115 | 685 | 155 | 23 | |||||||||||
L1 - length of side rail
L2 - distance of ladder steps
L3 - length of the upper step between side rails
L4 - space from the upper edge of the first step
L5 - total breadth of the ladder on the floor - pedestal
L6 - height of ladder – breadth of 2 steps
L7 - approximate weight
